Ultra HiFi-Center 9763 Stereo

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124741

• • Brand: Schwer & Söhne, GmbH

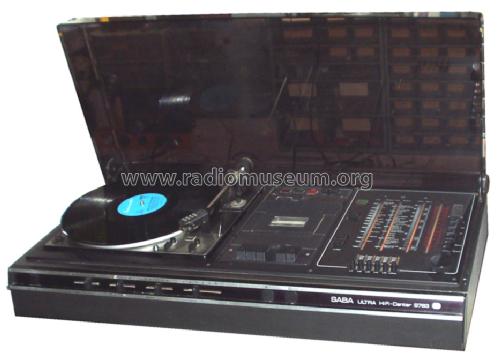

• Picture

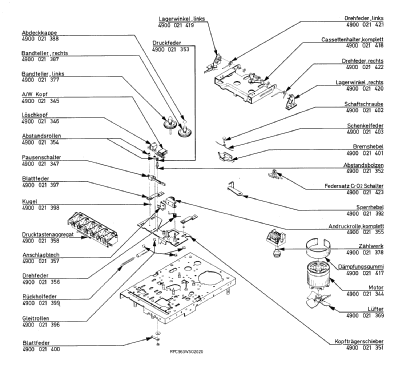

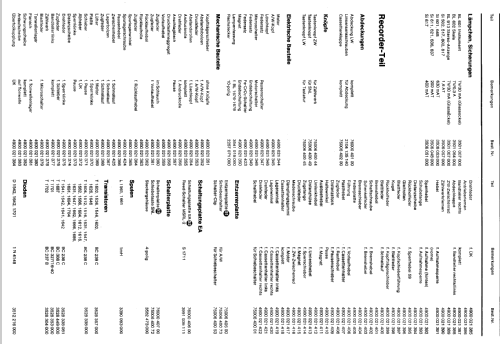

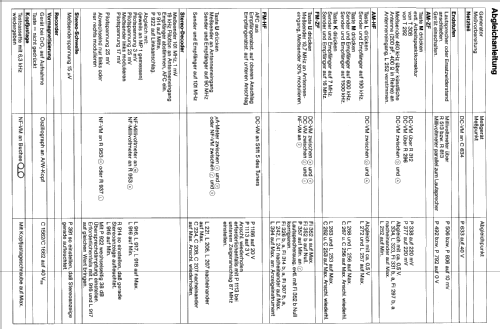

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Ultra HiFi-Center 9763 Stereo - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 820 x 190 x 370 mm / 32.3 x 7.5 x 14.6 inch

• Notes
• Ausgangsleistung: 2× 22 W (Sinus); Vierkanal-Wiedergabe möglich.
  Phono-Chassis = Dual 1226; Stereo-Cassetten-Recorder.
  Gehäuse nussbaumfarben oder metallic/anthrazit.

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
