Ultra HiFi Studio 9800 Stereo

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124742

• • Brand: Schwer & Söhne, GmbH

• Picture

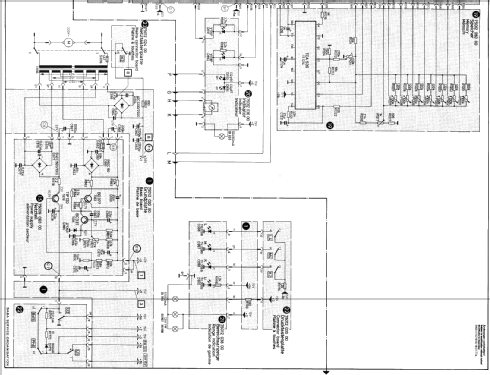

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Ultra HiFi Studio 9800 Stereo - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 700 x 150 x 360 mm / 27.6 x 5.9 x 14.2 inch

• Notes
• Ausgangsleistung: 2× 50 W (Musik)
  Vierkanal-Wiedergabe möglich
  Phono-Chassis = Dual 1226.

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
