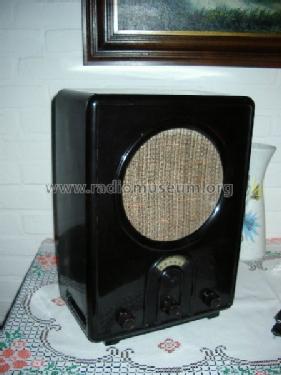

Volksempfänger VE301W
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1933–1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216541
-
- Brand: Schwer & Söhne, GmbH
Saba VE301W
SABA VE301W
Saba

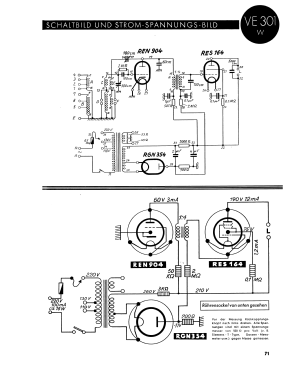

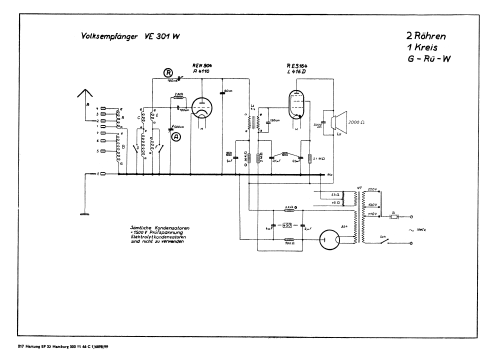

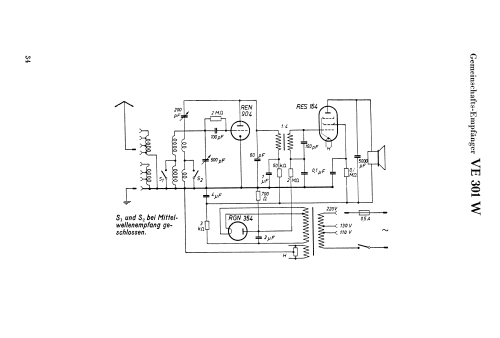

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 24 cm = 9.4 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Volksempfänger VE301W - SABA; Villingen
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 280 x 385 x 177 mm / 11 x 15.2 x 7 inch
- Notes
- Gehäusegestaltung durch Prof. Walter Maria Kersting (1889 - 1970).
Da nur Rückwand und meist das Typenschild den Hersteller zeigen, kann nicht immer nach diesem sortiert werden. Im übrigen sind die Produkte der verschiedenen Hersteller identisch.
Eine Auflistung aller deutschen Hersteller ist hier zu finden.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
