• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1970–1975

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 125955

• • Brand: Schwer & Söhne, GmbH

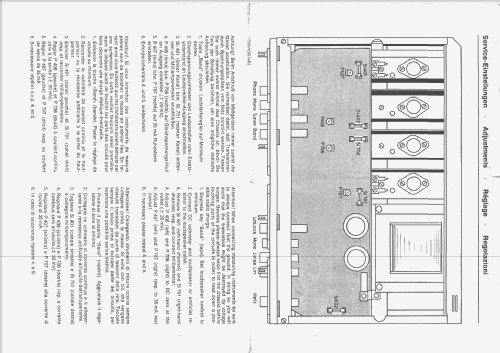

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 29

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: VS100 Stereo - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 415 x 110 x 280 mm / 16.3 x 4.3 x 11 inch

• Notes
• HiFi-Stereo-Verstärker mit 2 Endstufen je 30 W (Sinus); Übertragungsbereich: 20-20000 Hz.
  Nur im VDRG-Handbuch 1970 und 1974 gezeigt.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 498.00 DM

• Source of data
• Handbuch VDRG 1970/1971

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
