Württemberg S2710 color G

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1971 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 328040
    • Brand: Schwer & Söhne, GmbH

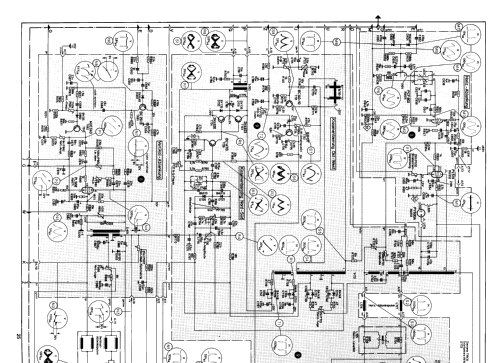

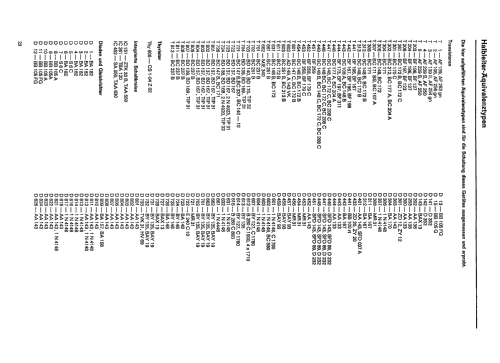

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Number of Transistors
  • 54
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Württemberg S2710 color G - SABA; Villingen
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 875 x 905 x 495 mm / 34.4 x 35.6 x 19.5 inch
  • Notes

  • Saba Württemberg S2710 color G

    • 66 cm PAL Fernseh-Standgerät
    • Empfangsbereiche
      • VHF - Bereich Kanäle: 2 - 12
      • UHF - Bereich Kanäle: 21 - 60
    • Antenneneingang 240 Ohm symmetrisch
      • Lautsprecher: 18 x 13 cm.
    • Weitere Halbleiter: 94 Dioden und Gleichrichter, 1 Thyristor

    Die kabelgebundene Fernbedienung Typ FS 27 enthält die Bedienelemente zum Einstellen der Lautstärke, Helligkeit und Farbsättigung





















  • Net weight (2.2 lb = 1 kg)
  • 58 kg / 127 lb 12.1 oz (127.753 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
