Württemberg S3600 Telecommander E

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969/1970 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 328041

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• ECC82 EF183 EF184 EF184 EF184 EF184 EF184 EL95 GY501 PC92 PC92 PCC85 PCC88 PCF802 PCF200 PCH200 PCL84 PCL84 PCL200 PL504 PL508 PL509 PY500 A67-100X

• Number of Transistors
• 25

• Semiconductors
• CA3035 AC127 AC151 AF106 AF121 AF139 AF239 BC107 BC148 BC174 BF167 BF173 AA114 AA118 AA119 AA133 AA137 AA138 BA136 BA147 BA170 BAY21 BB105 BY127 BY135 BY147 BYX10 E20C2 E250C10 MR31 1N4148 S6C SFD89 SiG1/200 SIS37 V40C2 ZF13

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Württemberg S3600 Telecommander E - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 870 x 915 x 610 mm / 34.3 x 36 x 24 inch

• Notes

• Saba Württemberg S3600 telecommander E

  • 67 cm Fernseh-Standgerät
  • Empfangsbereiche
    • VHF - Bereich Kanäle: 2 - 12
    • UHF - Bereich Kanäle: 21 - 60
  • Antenneneingang 240 Ohm symmetrisch
    • Lautsprecher: 11,5 x 17 cm.
  • Weitere Halbleiter: 72 Dioden und Gleichrichter

  Halbleiter nur einmal je Type gelistet.

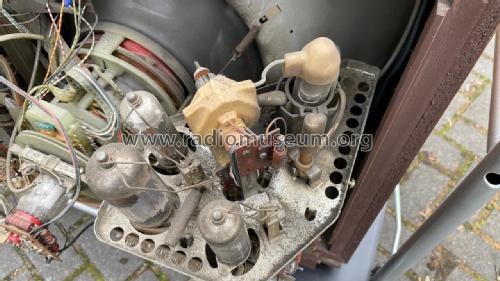

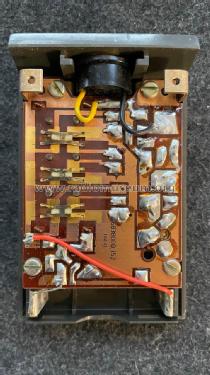

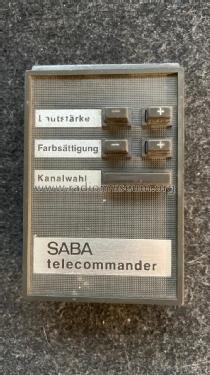

  Drahtlose Ultraschall-Fernsteuerung Saba Telecommander für Programmwahl, Lautstärke und Farbsättigung.





















• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
