Leningrad (Ленинград) T2

• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1950/1951

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 17496

• Picture

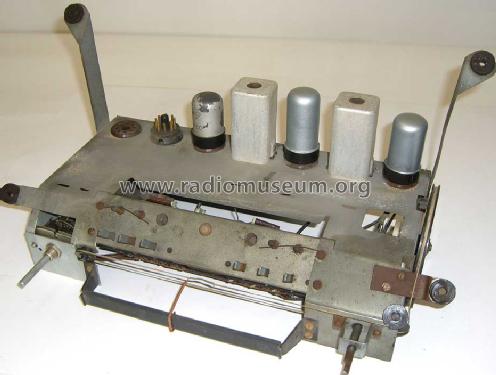

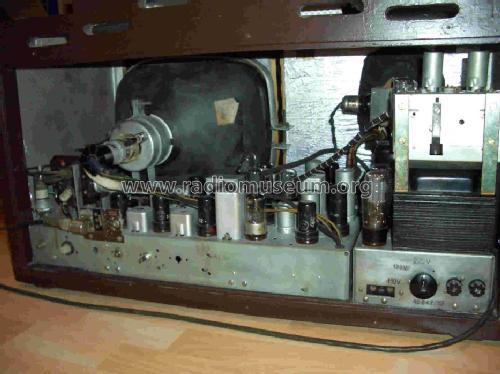

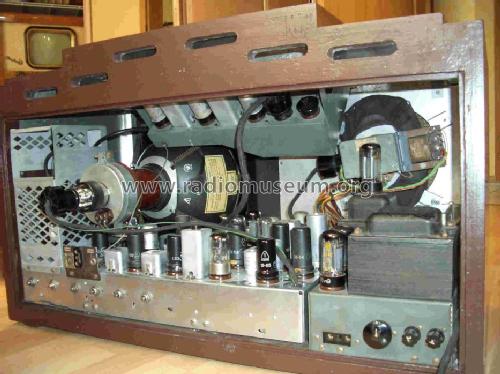

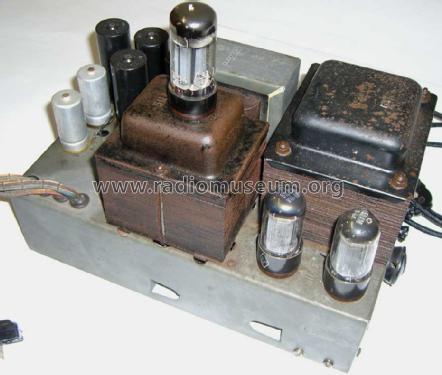

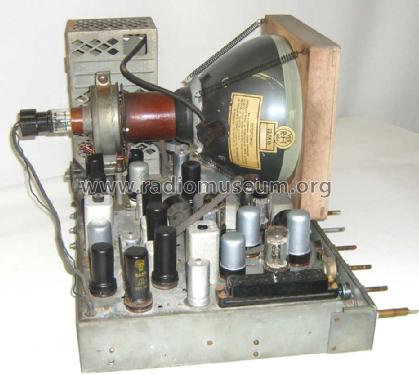

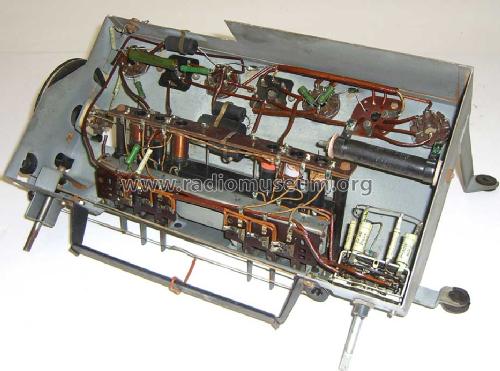

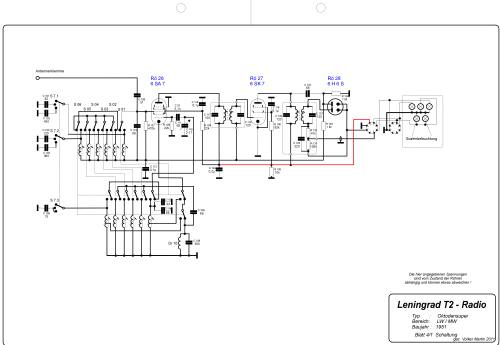

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 32

• Valves / Tubes
• 1Ц1С 1Ц1С 5Ц4С 6А7 6К3 6Х6С 5Ц4С 5Ц4С 5Ц4С 6Ж4 6С2С 6Ж4 6Ж4 6Х6С 6Ж4 6Ж4 6Н8С 6П9 6Ж3 6Ж3 6Ж3 6Ж3 6Х6С 6Ж8 6Н8С 6А7 6Н8С 6Ф6 6П6С 6Н8С ГУ-50 23ЛК1Б

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Leningrad T2 - Sachsenwerk Radeberg, VEB;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 775 x 480 x 440 mm / 30.5 x 18.9 x 17.3 inch

• Notes
• Constructed and built by Leningrad Kozitsky Works until 1951, then in large numbers manufactured by Sachsenwerk for reparation deliveries to USSR.

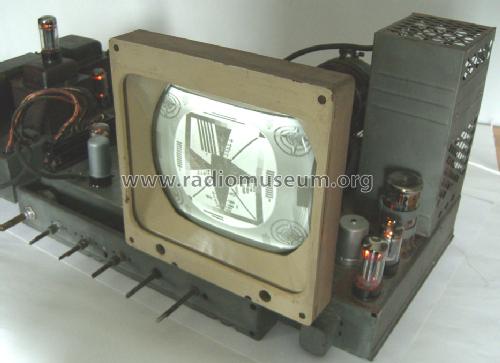

  TV screen 180x135 mm.
  Fernseher (drei VHF-Kanäle) mit eingebautem Radio (LMKU). Entwickelt durch die Leningrader Kozitsky Werke, dort gebaut von 1949 bis 1951. Anschließend im Sachsenwerk in großen Stückzahlen als Reparationsleistung für UdSSR produziert.


• Net weight (2.2 lb = 1 kg)
• 52 kg / 114 lb 8.6 oz (114.537 lb)

• Price in first year of sale
• 3,500.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek, 1956-57
