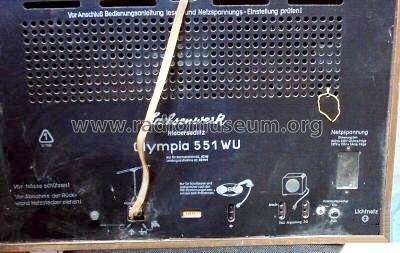

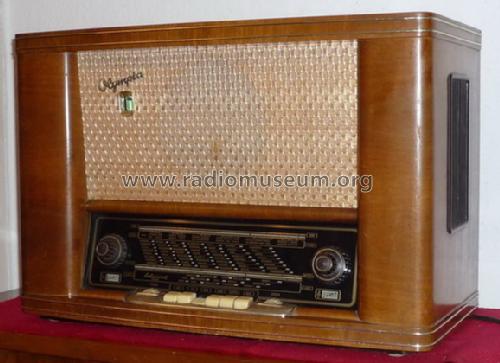

Olympia 551WU mit ECC85 und EM80

• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17504

• • Brand: VEB Elektromaschinenbau Sachsenwerk

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Olympia 551WU [mit ECC85 und EM80] - Sachsenwerk Niedersedlitz,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 635 x 425 x 305 mm / 25 x 16.7 x 12 inch

• Notes

• Variable Bandbreite.
  Wahlweise mit oder ohne 3D-Klang und optischer Klangfarbenanzeige.

  Weitere Unterlagen bei Olympia 551WU mit ECC81 und EM11

• Net weight (2.2 lb = 1 kg)
• 19.8 kg / 43 lb 9.8 oz (43.612 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
