- Country
- Germany
- Manufacturer / Brand
- Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17516
-
- Brand: VEB Elektromaschinenbau Sachsenwerk
Dehne
ebay: hollyrubb
ebay: hollyrubb
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 127, 220, 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

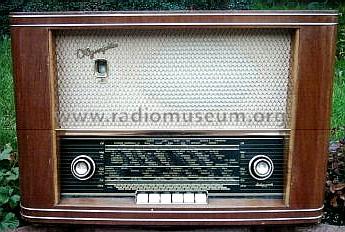

- Model: Olympia 573WU - Sachsenwerk Niedersedlitz,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 400 x 300 mm / 23.2 x 15.7 x 11.8 inch
- Notes
- Das Gerät ist der Olympia 573Wn und wurde in der Funkgeschichte der GFGF H.104/1995 falsch als 573WU bezeichnet. n= neues Gehäuse.
- Net weight (2.2 lb = 1 kg)
- 15.5 kg / 34 lb 2.3 oz (34.141 lb)
- Price in first year of sale
- 470.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (9504)
- Literature/Schematics (1)
- Funkverlag Hein, Service-DVD
