Eswe 3W

• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1930–1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6509

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

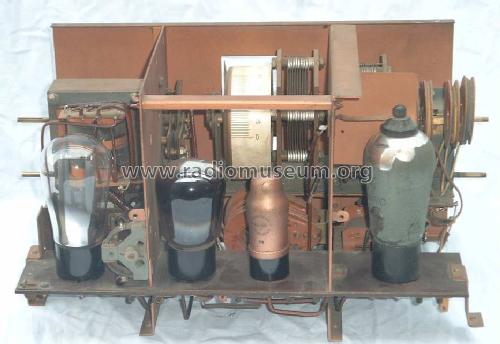

• Number of Tubes
• 4

• Valves / Tubes
• RENS1204 RE134 or RES164 RGN504 REN804 or REN904

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 135; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

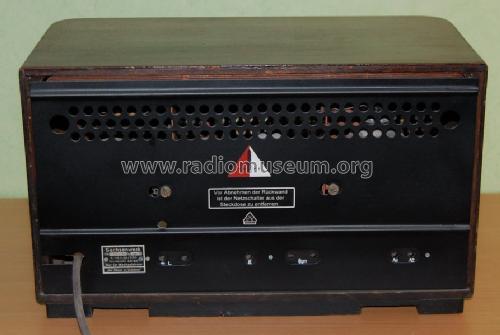

• Material
• Wooden case

• from Radiomuseum.org
• Model: Eswe 3W - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 225 x 215 mm / 16.1 x 8.9 x 8.5 inch

• Notes
• Sch in [638863] 1930 auf dem Markt mit REN804 statt 904 als "EsWe3". Mit RES164 7,-RM Aufpreis.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 197.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Radio-Schnorr-Katalog Nr.53 1931/32

• Literature/Schematics (1)
• -- Original prospect or advert

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 168 models, 144 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
