• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6500

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE074 RE084 RE074 RE134

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

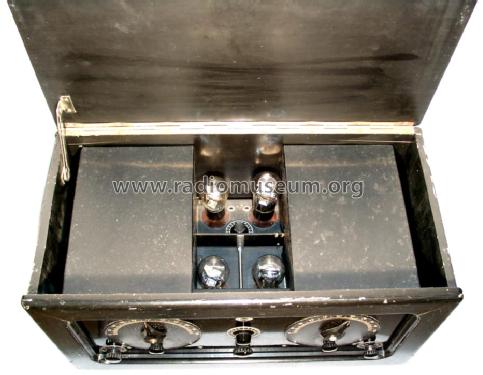

• Model: Eswe N4 - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 520 x 285 x 275 mm / 20.5 x 11.2 x 10.8 inch

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 256.00 RM !

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
