• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6427

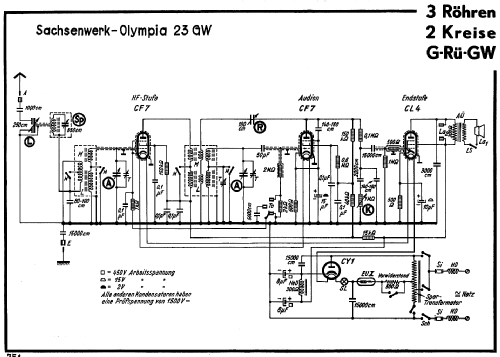

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF7 CF7 CL4 CY1 EUX

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Olympia 23GW - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 555 x 290 x 249 mm / 21.9 x 11.4 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 250.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Other Models

• Here you find 168 models, 144 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sachsenwerk (bis 1945) ESWE
