Olympia 385B
Sachsenwerk (bis 1945) ESWE
- Country
- Germany
- Manufacturer / Brand
- Sachsenwerk (bis 1945) ESWE
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6443
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 120+2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Olympia 385B - Sachsenwerk bis 1945 ESWE
- Dimensions (WHD)
- 435 x 253 x 250 mm / 17.1 x 10 x 9.8 inch
- Net weight (2.2 lb = 1 kg)
- 5.7 kg / 12 lb 8.9 oz (12.555 lb)
- Price in first year of sale
- 198.00 RM
- Source of data
- Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference

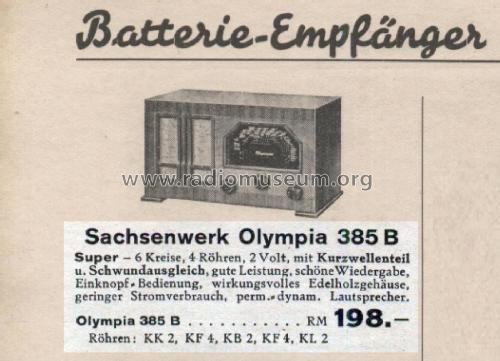

- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 168 models, 144 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sachsenwerk (bis 1945) ESWE
Collections
The model Olympia is part of the collections of the following members.
Forum contributions about this model: Sachsenwerk bis 1945: Olympia 385B
Threads: 1 | Posts: 3
I have other type of Olympia... It was transformed for AC operation. Can somebody tell me more...?
Attachments

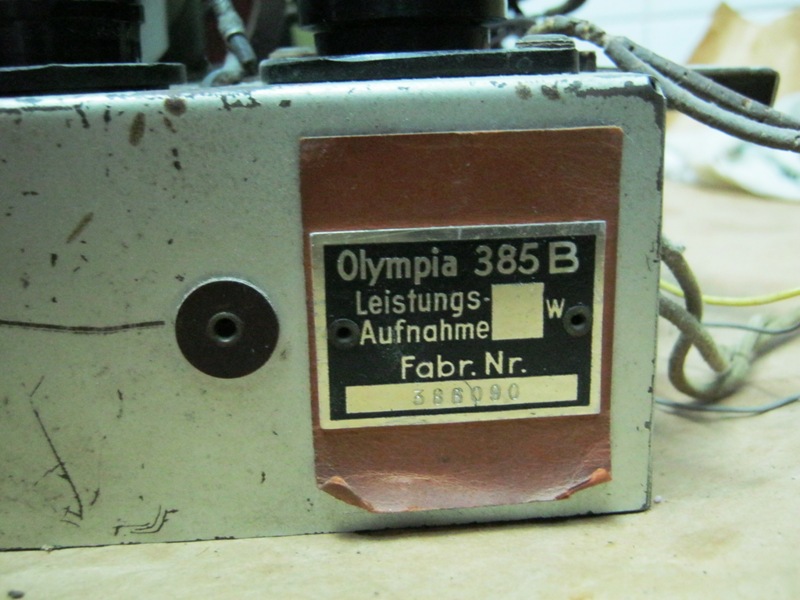

- D_Sachsenwerk_Olympia_385B_label (123 KB)
- D_Sachsenwerk_Olympia_385B_cover (138 KB)
- D_Sachsenwerk_Olympia_385B_back (143 KB)

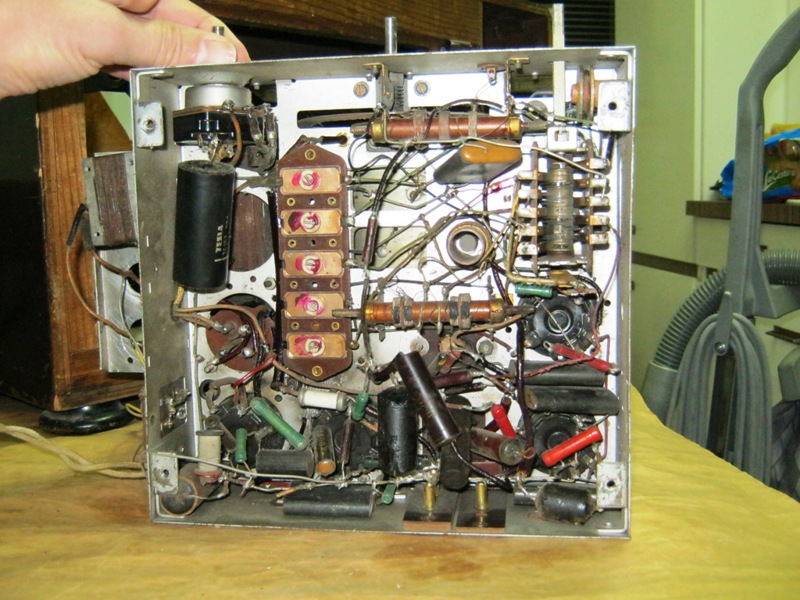

- D_Sachsenwerk_Olympia_385B_under (177 KB)
- D_Sachsenwerk_Olympia_385B_scale (176 KB)
- D_Sachsenwerk_Olympia_385B_trafo (143 KB)

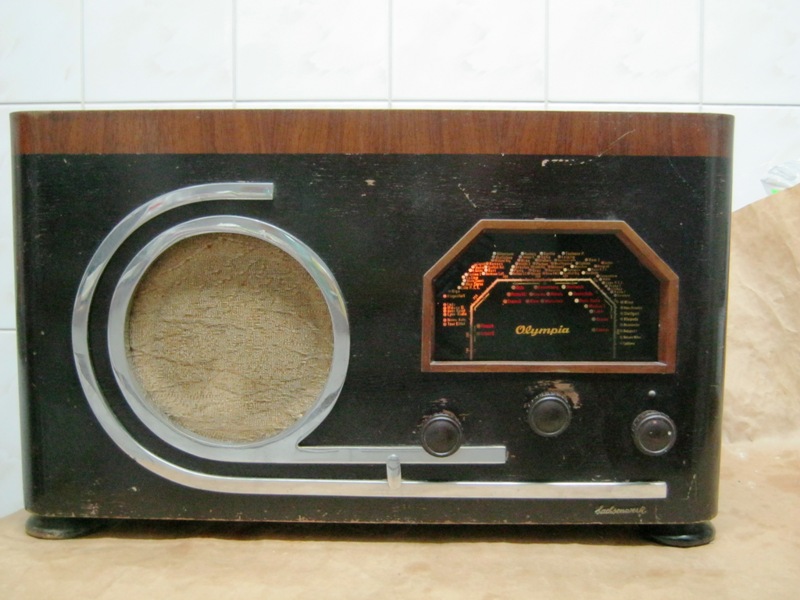

- D_Sachsenwerk_Olympia_385B_front (120 KB)
Francisc VISKY, 31.Jan.13
