Olympia-Reflex-Super W Hochformat
Sachsenwerk (bis 1945) ESWE
- Country
- Germany
- Manufacturer / Brand
- Sachsenwerk (bis 1945) ESWE
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6467
Katalog Fricke 1934/35
Ernst Roese Bremen 1935

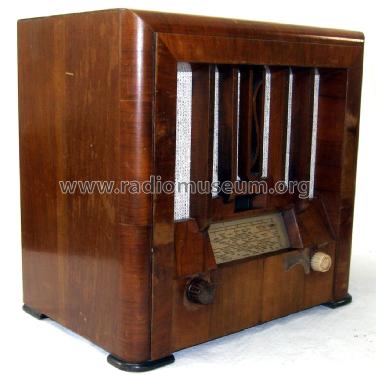

Front view.
Click on the schematic thumbnail to request the schematic as a free document.

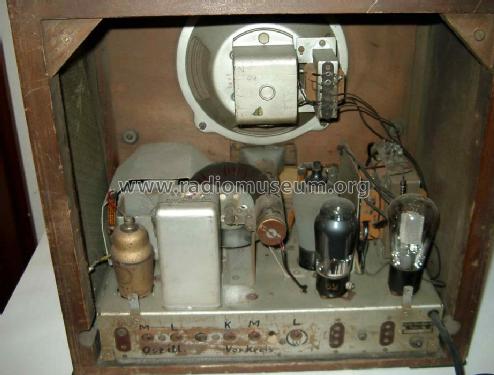

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; Super, reaction, but not adjustable
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Olympia-Reflex-Super W [Hochformat] - Sachsenwerk bis 1945 ESWE
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 410 x 427 x 275 mm / 16.1 x 16.8 x 10.8 inch
- Notes
- Hochformat
- Price in first year of sale
- 275.00 RM
- Source of data
- Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Katalog Radio-WEB 1934/35 Nr.3326
