- Country
- Italy
- Manufacturer / Brand
- SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99760
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 416 - SAFAR Società Anonima
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 340 x 260 mm / 17.7 x 13.4 x 10.2 inch
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)

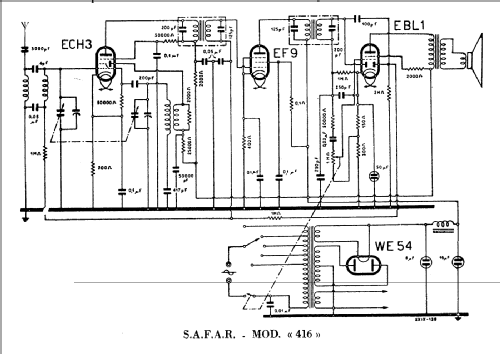

- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
