- Country
- Italy
- Manufacturer / Brand
- SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117073
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer); Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

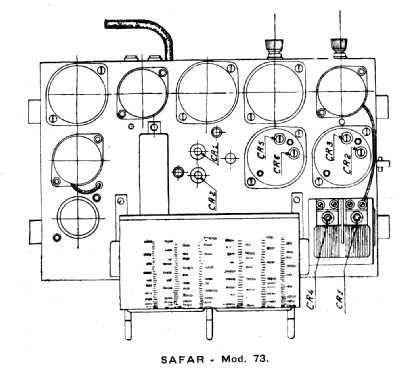

- Model: 73 - SAFAR Società Anonima
- Shape
- Console with any shape - in general
- Notes
-
Oltre all'ascolto in altoparlante, è prevista una presa per l'ascolto in cuffia. Presa per un secondo altoparlante. Commutatore: Altoparlante 1 / Cuffia / Altoparlante 2.
Controllo di tono.
Indicatore ottico di sintonia.
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Literature/Schematics (1)

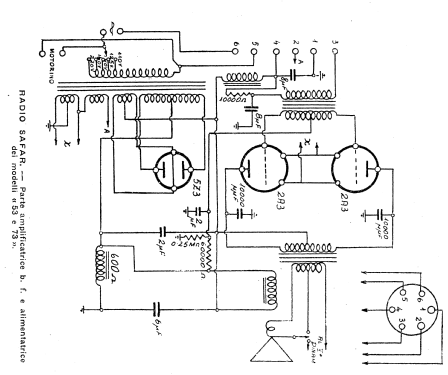

- -- Schematic
- Literature/Schematics (2)
- -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
