• Country
• Italy

• Manufacturer / Brand
• SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105277

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 35 24 35 24 47 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

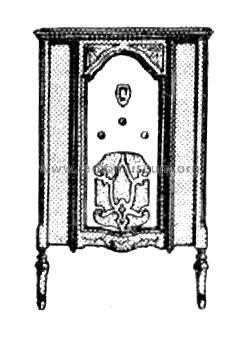

• Model: Liricon - SAFAR Società Anonima

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Controllo di tono.
  Ingresso Fono con esclusione automatica del segnale radio.
  Regolazione del volume radio con attenuazione del segnale all'antenna.
  Sebbene su Guida Pratica Antique Radio sia indicato 6 valvole (una sola 47), lo schema mostra 7 valvole.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
