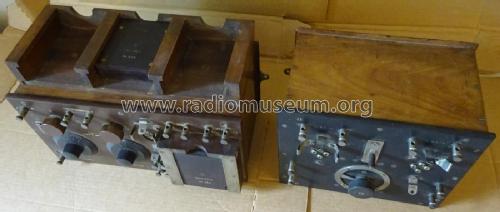

Récepteur - Radio Receiver Type 3
SAIT (S.A.I.T.) Electronics, Radio Holland, CTSF (C.T.S.F.); Bruxelles, Zellik
- Country
- Belgium
- Manufacturer / Brand
- SAIT (S.A.I.T.) Electronics, Radio Holland, CTSF (C.T.S.F.); Bruxelles, Zellik
- Year
- 1923 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 355437
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Récepteur - Radio Receiver Type 3 - SAIT S.A.I.T. Electronics,
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 340 x 215 x 195 mm / 13.4 x 8.5 x 7.7 inch
- Notes
-
4 coils for changing the wave bands, two of them with unknown ranges.
- Coil A ???
- Coil B 240 - 800 meters
- Coil C ???
- Coil D 1800 - 7000 meters

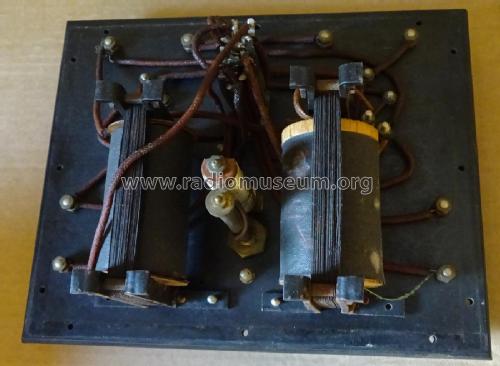

The 2-stage audio amplifier weighs 3.3 kg and has the dimensions of (WxHxD) of 250 x 200 x 190 mm.
The V24 vacuum tube is a guess; no tubes were on the set.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Gary Berg. See "Data change" for further contributors.
