• Country
• Spain

• Manufacturer / Brand
• Sales-Kit; Barcelona

• Year
• 1979

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 308191

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC547 or. SC147 BC547 or. SC147 BC547 or. SC147 BC547 or. SC147 BC547 or. SC147 BC558 or. SC158 BC548 or. SC148 MC140 BD138 BD137 2N3055 2N3055

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (max.)

• Material
• Metal case

• from Radiomuseum.org

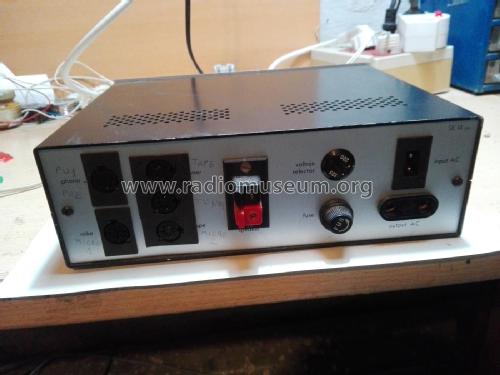

• Model: Amplificador Hi-Fi Monoaural de 25W Eficaces SK-14 - Sales-Kit; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 235 x 70 x 186 mm / 9.3 x 2.8 x 7.3 inch

• Notes

• SK-14 (1979) Amplificador Hi-Fi monoaural de 25W eficaces.

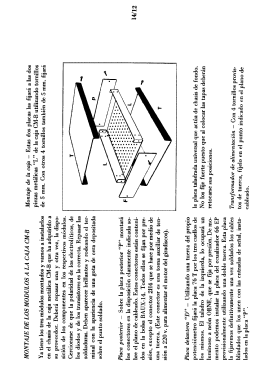

  Montado en caja CM-B

  Se añade el año al modelo porque Sales-Kit usaba el mismo número para kits diferentes fabricados en diferentes años. Existe un SK-14 de 1970 denominado "Amplificador de potencia 10W"

• Mentioned in
• SK Libro 2 Amplificadores (1979)

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
