• Country
• Spain

• Manufacturer / Brand
• Sales-Kit; Barcelona

• Year
• 1980 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 351591

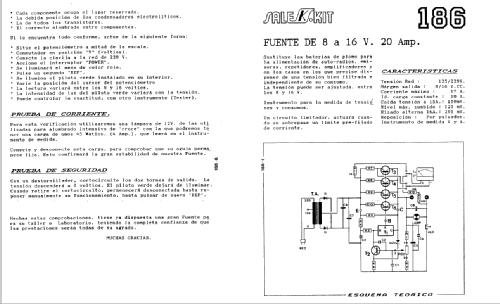

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N3055 2N3055 2N3055 2N3055 BDX53 BC557

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fuente de 8 a 16V 20A SK-186 - Sales-Kit; Barcelona

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 200 x 130 x 160 mm / 7.9 x 5.1 x 6.3 inch

• Notes
• • Corriente máxima: 17 A
  • Id. carga constante:  10 A
  • Caida tensión a 15A:    150 mV
  • Nivel máximo zumbido: 120 MV
  • Rizado alterna 16A: 200 mV
  • Tamaño con caja CM-A

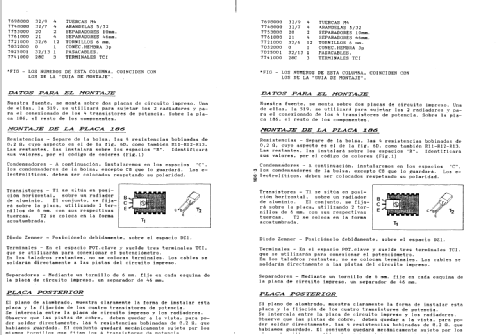

  • Suministrado en KIT para montar

• Author
• Model page created by Rafael Hernandez Fuentes. See "Data change" for further contributors.
