• Country
• Great Britain (UK)

• Manufacturer / Brand
• Salford Electrical Instruments Ltd; Salford

• Year
• 1965 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 328680

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Multi-Range Meter Selectest Mark II [Super 50] - Salford Electrical Instruments

• Notes

• Portable multimeter.
  Selectest Mark II Super 50, with a basic movement of 50 µA  and 32 ranges to measure AC/DC voltage - current, and resistance.


  DC voltage: 250 mV to 2500 V.
  DC current: 50 µA to 10 A.
  AC voltage: 2.5 to 2500 V.
  AC current: 25 mA to 10 A.
  Resistance: 0 - 2000 Ω to 0 - 20 MΩ.

• Mentioned in
• -- Original-techn. papers. (Electronic Engineering, volume 37 year 1965)

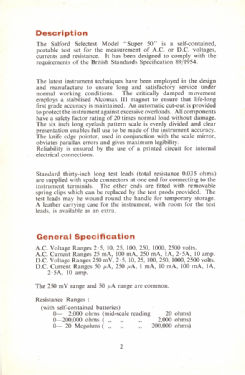

• Literature/Schematics (1)
• Electronic Engineering volume 38, December 1966

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
