Multi-Range Meter Selectest Mark II Super K

Salford Electrical Instruments Ltd; Salford

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 328681

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Multi-Range Meter Selectest Mark II [Super K] - Salford Electrical Instruments
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 7 x 9 x 3.5 inch / 178 x 229 x 89 mm
  • Notes

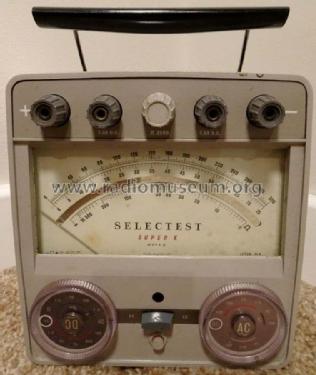

  • Selectest Mark II Super K portable multimeter, with a basic movement of 1 mA and 39 ranges to measure AC/DC voltage, current, and resistance.

    General Specification
    A.C. Voltage Ranges 7.5, 75, 300, 750 volts.
    A.C. Current Ranges 75 mA, 750 mA, 7.5 amps.
    D.C. Voltage Ranges 150 mV, 1.5, 15, 75, 300, 750 volts.
    D.C. Current Ranges 1.5 mA, 15 mA, 150 mA, 1.5, 7.5 amps.

    All the above ranges can be doubled by using the X2 multiplying
    switch.

    Resistance Ranges (with self-contained batteries)
    0 - 1,000Ω (mid scale reading 50Ω)
    0 - 10,000Ω (mid scale reading 500Ω)
    0 - 100,000Ω (mid scale reading 5,000Ω)

  • Net weight (2.2 lb = 1 kg)
  • 5 lb 6 oz (5.375 lb) / 2.440 kg
  • Mentioned in
  • -- Original-techn. papers. (Electronic Engineering volume 37 year 1965)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Specification)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
