670
Salora; Salo
- Country
- Finland
- Manufacturer / Brand
- Salora; Salo
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174336
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 250 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

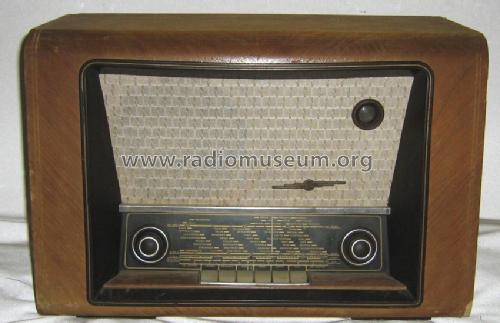

- Model: 670 - Salora; Salo
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 530 x 350 x 260 mm / 20.9 x 13.8 x 10.2 inch
- Notes
-
See also the similar model Salora Apollo.
- Net weight (2.2 lb = 1 kg)
- 13.6 kg / 29 lb 15.3 oz (29.956 lb)
- Source of data
- -- Schematic
- Author
- Model page created by Jouko Laukkanen. See "Data change" for further contributors.
