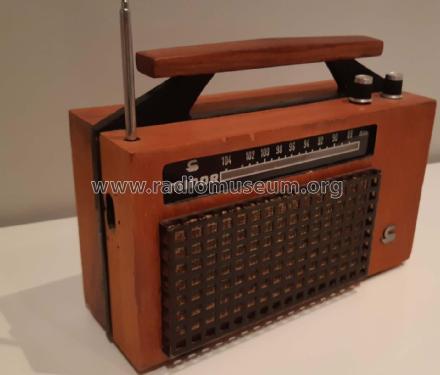

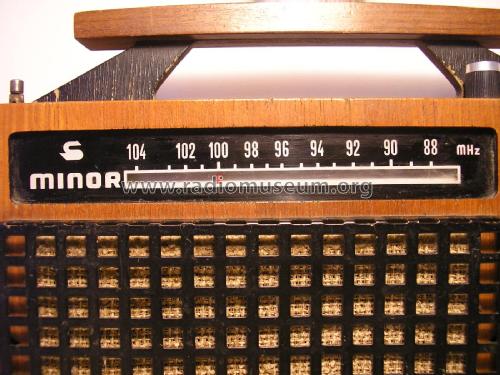

Minor
Salora; Salo
- Country
- Finland
- Manufacturer / Brand
- Salora; Salo
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95370
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Minor - Salora; Salo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 265 x 196 x 105 mm / 10.4 x 7.7 x 4.1 inch
- Notes
- Speaker:3,5"x 8,5" Peerles. Separate power supply 220Vac/6V dc, Type VLA-6, was available.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Price in first year of sale
- 178.00 FIM
- Source of data
- - - Data from my own collection
