AM/FM 2 Band Radio Stereo Cassette Recorder ST-329
Samsung Co.; Daegu
- Country
- South Korea
- Manufacturer / Brand
- Samsung Co.; Daegu
- Year
- 1987 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242488

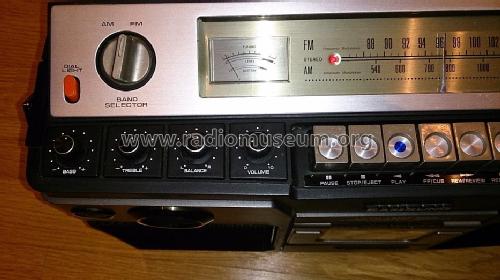

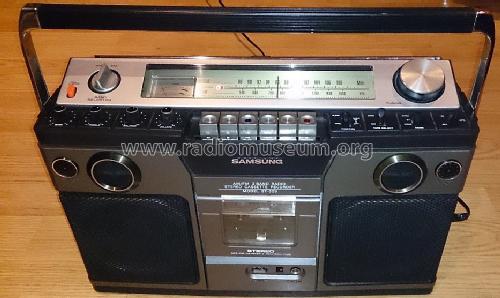

Picture Courtesy Of Mr. Adam Gigiel
Picture Courtesy Of Mr. Adam Gigiel
Picture Courtesy Of Mr. Adam Gigiel
Picture Courtesy Of Mr. Adam Gigiel
Picture Courtesy Of Mr. Adam Gigiel
Picture Courtesy Of Mr. Adam Gigiel
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 x 1,5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 4 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM/FM 2 Band Radio Stereo Cassette Recorder ST-329 - Samsung Co.; Daegu
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Samsung Portable AM/FM 2 Band Radio Stereo Cassette Player / Recorder Model ST-329.
Tuning Range: AM 530 - 1605 kHz, FM 88 - 108 MHz.
Bass & Treble Controls, "Matrix" Wide Stereo
Auto Stop, 3 Digit Analog Tape Counter, CrO2 Tape Capability.
Sleep Function, Dial Light.
2Way Speaker System (120mm Woofer, 30mm Tweeter).
Power Consumption 10 Watts.
Made in Korea.
