Radio Cassette Recoder PD-790
Samsung Co.; Daegu
- Country
- South Korea
- Manufacturer / Brand
- Samsung Co.; Daegu
- Year
- 1991
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286899

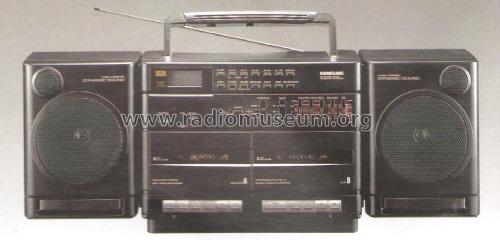

Foto catalogo Samsung

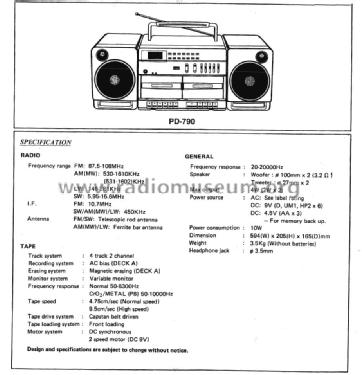

Original manual.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / D: 6× 1.5 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radio Cassette Recoder PD-790 - Samsung Co.; Daegu
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 594 x 205 x 165 mm / 23.4 x 8.1 x 6.5 inch
- Notes
-
Realce dos sons graves Super bass, Sintonia digital, sintonia up/down cancelamento de memorias, busca, Sintonia digital sintetizada, com 20 estações pré-sintonizadas 10 FM e10 AM, Equalizador grafico de 3 bandas, Duplo Deck cassetes, Cópia de alta velocidade, Controle automatico do nivel de gravação, Temporizador erelogio, Paragem automatica no fim da fita, Sistema de gravação de uma tecla,microfone incorporado, 4 altifalantes de 2 vias, colunas destacaveis, Potência de saida 18W PMPO.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
