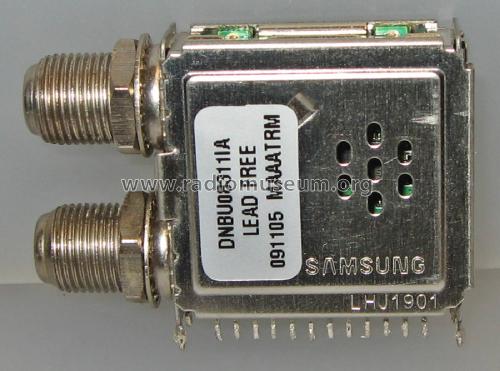

Sat-Tuner DNBU08311IA
Samsung Co.; Daegu
- Country
- South Korea
- Manufacturer / Brand
- Samsung Co.; Daegu
- Year
- 2009 ??
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 319619
- Number of Transistors
- Semiconductors present.
- Semiconductors
- STV6110
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Sat-Tuner DNBU08311IA - Samsung Co.; Daegu
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 34 x 46 mm / 0.5 x 1.3 x 1.8 inch
- Notes
-
Tuner für digitale Satellitenreceiver.
Anschlüsse LNB IN / IF OUT (F-Type).Halbleiterliste nicht vollständig.
- Net weight (2.2 lb = 1 kg)
- 0.022 kg / 0 lb 0.8 oz (0.048 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
