• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 1995–1998

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78940

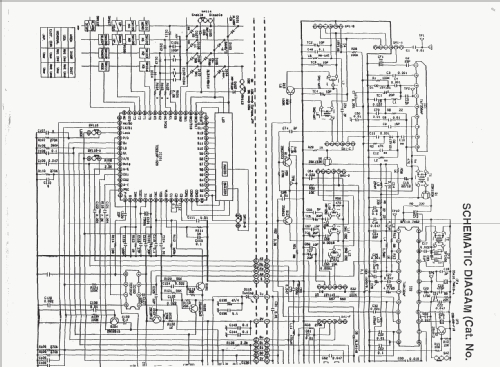

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ATS-202 - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 130 x 88 x 28 mm / 5.1 x 3.5 x 1.1 inch

• Notes
• shortwave coverage 2300-7300, 9500 - 26100 kHz, 20 memories, clock/timer.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Price in first year of sale
• 85.00 $

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
