ATS-606A

• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 1993–2008

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78945

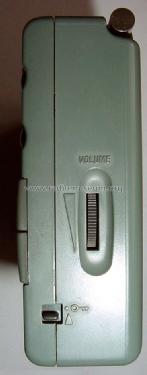

• Picture

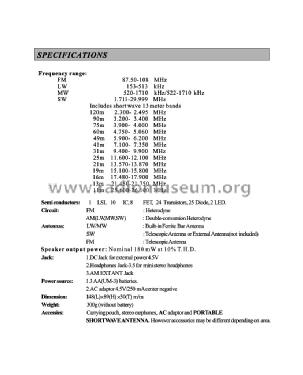

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 3 × 1,5 / 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.1 cm = 2 inch

• Power out
• 0.16 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ATS-606A - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 148 x 89 x 30 mm / 5.8 x 3.5 x 1.2 inch

• Notes

• Coverage 153 - 29995 kHz, digital readout, 54 memories, clock / timer.

  Comparable model: Siemens RK759.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
