• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 1994 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78946

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA 4 × 1,5 / 6 / AA 2× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

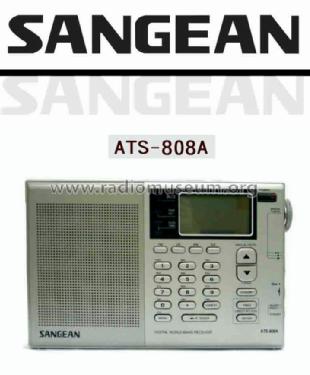

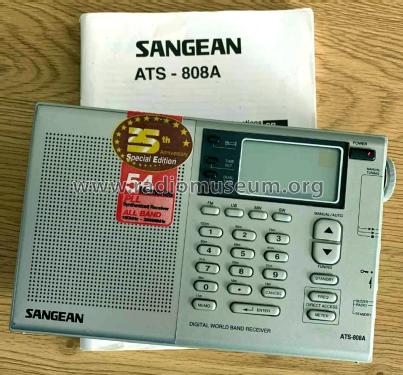

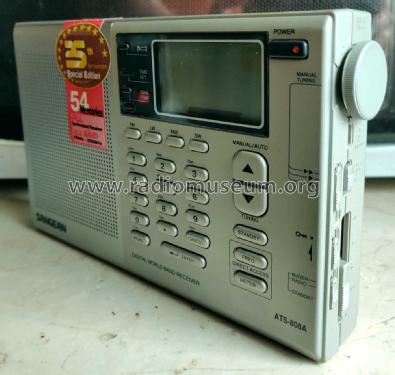

• Model: ATS-808A - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 196 x 125 x 36 mm / 7.7 x 4.9 x 1.4 inch

• Notes

• Coverage 150 - 29999 kHz, two IF bandwidths, direct frequency keypad entry, 54 memories, dual clock / timer.

  Back-up Battery: AA 2 × 1,5  V.

  See also Siemens RK661

• Net weight (2.2 lb = 1 kg)
• 0.620 kg / 1 lb 5.9 oz (1.366 lb)

• Price in first year of sale
• 120.00 $

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
