• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 2006 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354449

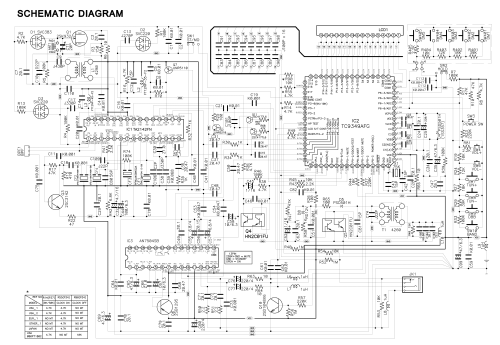

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

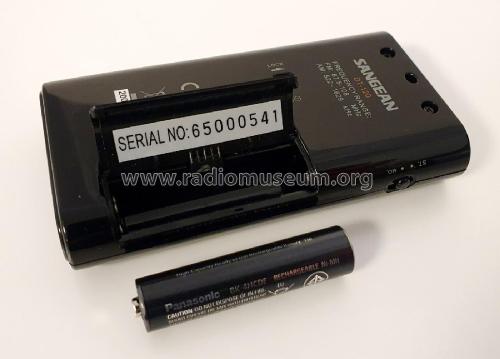

• Dry Batteries / AAA: 1 x 1.5 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 0.002 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

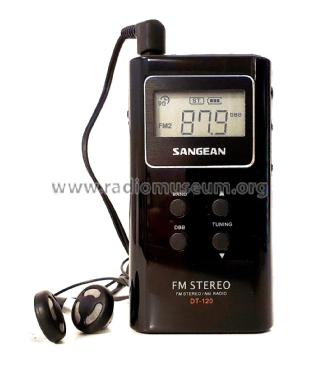

• Model: FM Stereo/AM Pocket Receiver DT-120 - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 49 x 92.5 x 17.5 mm / 1.9 x 3.6 x 0.7 inch

• Notes

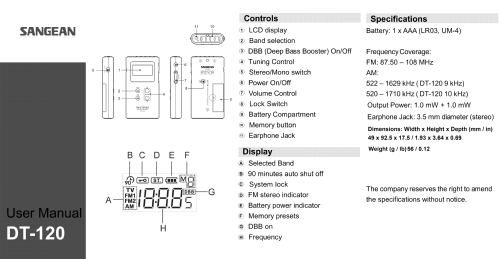

• The DT-120 radio has 15 preset stations (5 AM/10 FM). DBB bass boost function. Low battery indicator. Automatic shut-off function for 90 minutes. Stereo headphones included. There are options for transparent and white case.

  While maintaining the same body size, the DT-120 differs from later models in its circuit design, location of control buttons, display type and low-voltage 1.5 V power supply.

• Net weight (2.2 lb = 1 kg)
• 0.056 kg / 0 lb 2 oz (0.123 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
