• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 2006 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234334

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x (AAA) 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 cm = 1.4 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

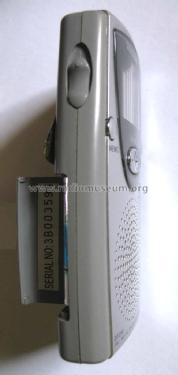

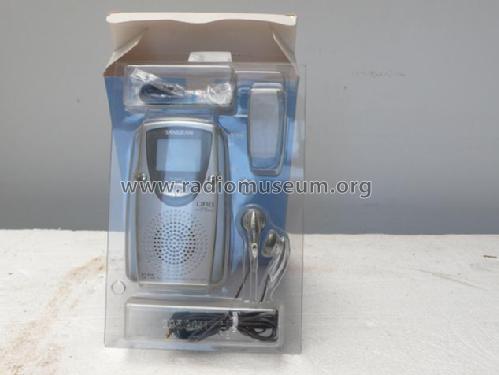

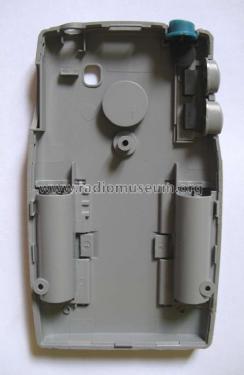

• Model: FM/AM PLL Synthesized Receiver DT-210 - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 62 x 107 x 20 mm / 2.4 x 4.2 x 0.8 inch

• Notes

• 25 preselect.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
