SG-631
Sangean; Chung Ho City
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Sangean; Chung Ho City
- Year
- 1992 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346732

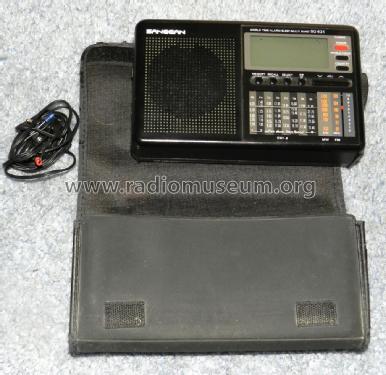

Sangean SG-631 multi band radio
Sangean SG-631 back view
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: SG-631 - Sangean; Chung Ho City
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 7.5 x 4 x 1.5 inch / 191 x 102 x 38 mm
- Notes
-
Analog tuning. Display shows time, day, country (for 260 cities). Includes 8 city memory presets, LED tuning indicator, FM stereo indicator, Has alarm/snooze function, automatic daylight savings time compensator, low battery indicator, 10 second light, stereo/mono switch. Equipped with suede pouch and stereo earphones.
Covers 10 bands: AM 530-1710 kHz, FM 87.5-108 MHz, and SW; 5.9-6.2, 7.1-7.4, 9.5-9.9, 11.65-12.05,13.60-13.90, 15.10-15.60, 17.50-17.95 and 21.45-21.95 MHz.
The Radio Shack model DX-343 is a very similar model, made by Sangean.
- Net weight (2.2 lb = 1 kg)
- 0.75 lb (0 lb 12 oz) / 0.341 kg
- Price in first year of sale
- 120.00 USD
- Mentioned in
- Popular Communications 1992 Communications-Guide p 82
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
