• Country
• Japan

• Manufacturer / Brand
• Sankyo Seiki Mfg.Co.Ltd.

• Year
• 1973 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 109746

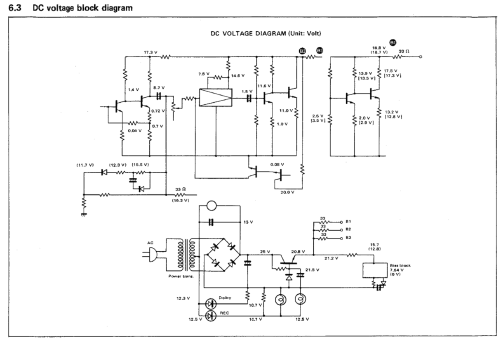

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck STD-1700 - Sankyo Seiki Mfg.Co.Ltd.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 360 x 157 x 260 mm / 14.2 x 6.2 x 10.2 inch

• Notes
• Sankyo STD-1700 Stereo Cassette Deck;
  Dolby NR, Permalloy playb./rec. head, response up to 40 - 15.000 Hz CrO²/FeCr tape, <0.15% WRMS, 14 transistors, 2 IC, 17 diodes, 1 LED, tape counter, two VU meters, norm/CrO² tape bias, phones & 2 x mic. jacks, left & right record level controls, auto stop, DIN and RCA terminals, 15 W power consumption.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
