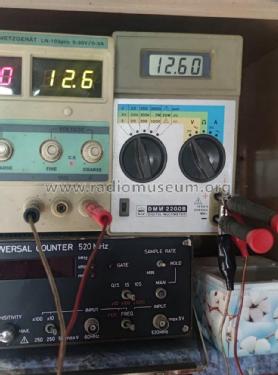

Digital Multimeter DMM2200B

Sansei Electronics Corp (SEC).; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 339062

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Dry Batteries / 1 × 9 Volt
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Multimeter DMM2200B - Sansei Electronics Corp SEC.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 165 x 110 x 43 mm / 6.5 x 4.3 x 1.7 inch
  • Notes

  • 3½ LCD Digital Multimeter. (hand-held model)

    Two Teflon-bushed rotary switches provide 21 ranges in 5 modes.

    • ±2 Amp AC/DC.
    • ±1000 V AC/DC.
    • 200Ω to 20 MΩ
    • Re-settable circuit beaker.
    • 200 hours of operation from a 9 V battery.
  • Price in first year of sale
  • 49.95 GB £
