Mini AF Generator 6803
Sansei Electronics Corp (SEC).; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sansei Electronics Corp (SEC).; Tokyo
- Year
- 1970–1972 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 118865
- Number of Transistors
- 8
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Mini AF Generator 6803 - Sansei Electronics Corp SEC.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 190 x 100 x 90 mm / 7.5 x 3.9 x 3.5 inch
- Notes
-

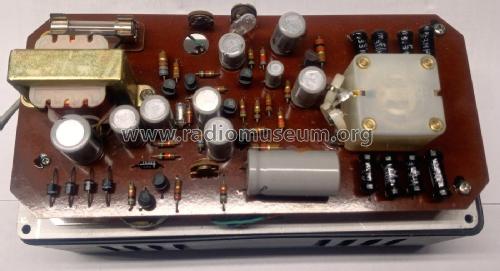

Der Generator erzeugt die Sinusschwingung mit einem Wien-Robinson-Brückenoszillator, dessen Amplitude mit einer Glühlampe (als PTC) stabilisiert wird. Das Rechteck wird daraus mit einem diskret aufgebautem Schmitt-Trigger gebildet.
Der Frequenzbereich reicht von 10 Hz bis 100 kHz in vier Stufen, die Abstimmung erfolgt mittels eines untersetzten Drehkondensators.
Frequenzgenauigkeit: ±2%, max. Ausgangsspannung mit 600 Ω Last: +9 dB, Ausgangsimpedanz: ca. 700 Ω, Klirrfaktor <0,3% von 200 Hz bis 100 kHz und <0,8% von 10Hz bis 100kHz, Rechteck-Anstiegszeit: 0,2 µS
Sine and square signal, 10 Hz to 100 kHz.
- Net weight (2.2 lb = 1 kg)
- 0.850 kg / 1 lb 14 oz (1.872 lb)
- Price in first year of sale
- 240.00 DM
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Technik-Versand KG, Katalog Nr. 23, 1972
- Author
- Model page created by a member from A. See "Data change" for further contributors.
