• Country
• Japan

• Manufacturer / Brand
• Sansei Electronics Corp (SEC).; Tokyo

• Year
• 1974 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 195360

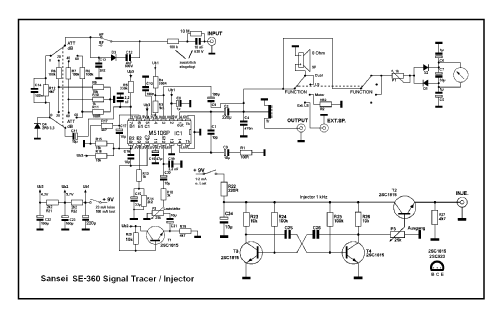

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2SC945 2SC945 2SC945 2SC945 M5106P

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Signal Tracer - Injector SE-360 - Sansei Electronics Corp SEC.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 85 x 70 x 151 mm / 3.3 x 2.8 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 0.460 kg / 1 lb 0.2 oz (1.013 lb)

• Price in first year of sale
• 135.00 DM

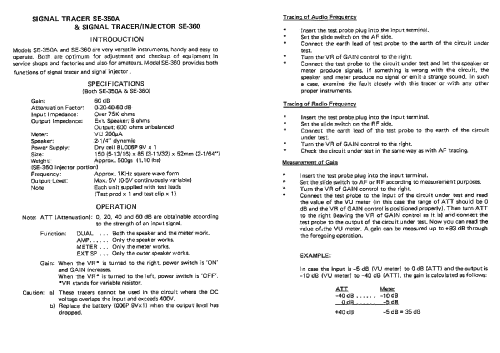

• Literature/Schematics (1)
• Arlt Katalog 1975

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
