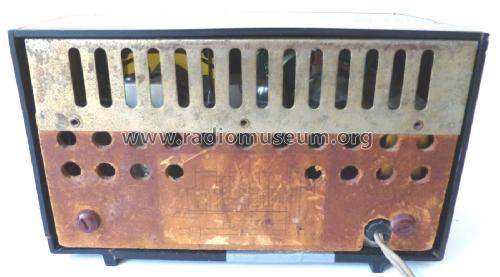

Baby Home Radio KR-45 Kit
Sanshin Electric Co.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sanshin Electric Co.; Tokyo
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221139
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Baby Home Radio KR-45 Kit - Sanshin Electric Co.; Tokyo
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 185 x 110 x 105 mm / 7.3 x 4.3 x 4.1 inch
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
