• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146588

• Number of Transistors
• Semiconductors present.

• Semiconductors
• µPC555 µPC554 STK-013

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

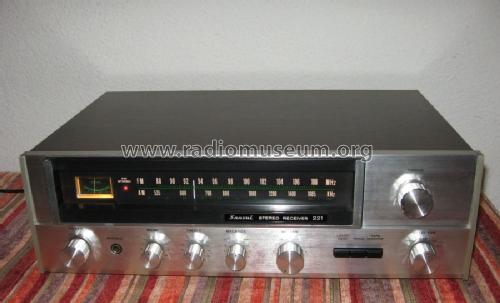

• Model: Stereo Receiver 221 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 267 x 118 mm / 16.7 x 10.5 x 4.6 inch

• Notes
• AM/FM Stero-Receiver mit 2 x 10 Watt Sinus an 8 Ohm.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 423 models, 409 with images and 131 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
