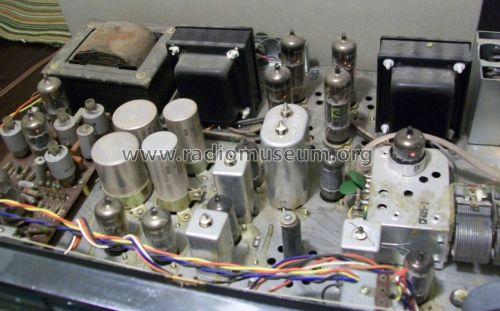

AM/FM Multiplex Stereo Amplifier SAX-200

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 203071

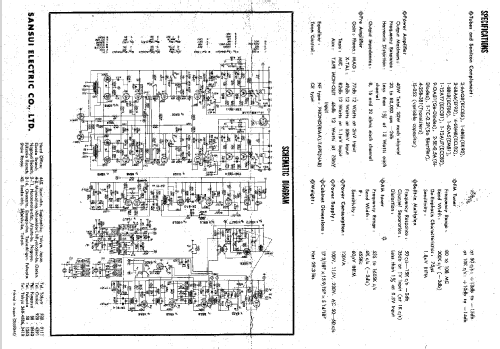

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Number of Transistors
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 115; 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 26 W (40 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AM/FM Multiplex Stereo Amplifier SAX-200 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 17.17 x 5.78 x 13.5 inch / 436 x 147 x 343 mm
  • Notes

  • A hi-fi valve receiver with an AM/FM stereo tuner with analogue dial, and an amplifier with max. power output of 2 x 20 watts, or 2 x 13 watts with THD < 1 %.

  • Net weight (2.2 lb = 1 kg)
  • 29.3 lb (29 lb 4.8 oz) / 13.302 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Operating Instructions Sansui SAX-200)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions and Service Manual Sansui SAX-200)
