AM/FM Stereo Cassette Receiver RX-4100
Sansui Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sansui Electric Co., Ltd.; Tokyo
- Year
- 1985 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 344735
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Stereo Cassette Receiver RX-4100 - Sansui Electric Co., Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 188 x 58 x 185 mm / 7.4 x 2.3 x 7.3 inch
- Notes
-
AM/FM Stereo Cassette Receiver,
- Quartz PLL synthesized.
- Dolby noise reduction.
- 15 watts per channel into 4 ohms.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Mentioned in

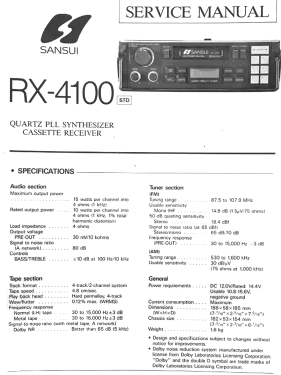

- - - Manufacturers Literature (Sansui RX-4100 Service Manual)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
