Compact Disc Stereo Music System CDT-3900, AD-3900, S-3900

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 357070

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Compact Disc Stereo Music System CDT-3900, AD-3900, S-3900 - Sansui Electric Co., Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 300 x 300 x 200 mm / 11.8 x 11.8 x 7.9 inch
  • Notes

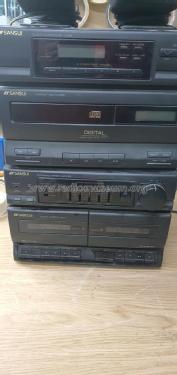

  • Sansui Compact Disc Stereo Music System 3900

    Bands:

    • FM 87.5 - 108 MHz
    • SW 5.95 - 15.6 MHz
    • MW 531 - 1602 kHz
    • LW 146 - 281 kHz

    - AD-3900: Integrated Stereo Amplifier, Power Supply and Double Cassette Deck
    - CDT-3900: Compact Disc Player and LW/MW/SW/FM Tuner
    - S-3900: Speaker system, impedance 3.2 Ω

    Back-up battery 2 x 1.5 V



  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
