Eight (8)

• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 171707

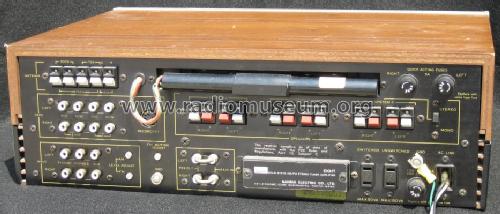

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 85

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 100-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Eight - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 444 x 140 x 327 mm / 17.5 x 5.5 x 12.9 inch

• Notes
• Sansui Eight AM-FM Stereo Tuner-Amplifier
  60 + 60W at 8 ohms, 80 + 80W at 4 ohms @ less than 0.3% THD
  Uses 3 dual-gate MOS-FETs in the FM frontend combined with a 4 gang variable capacitor.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 2,648.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.

• Other Models

• Here you find 423 models, 409 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sansui Electric Co., Ltd.; Tokyo
