• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96775

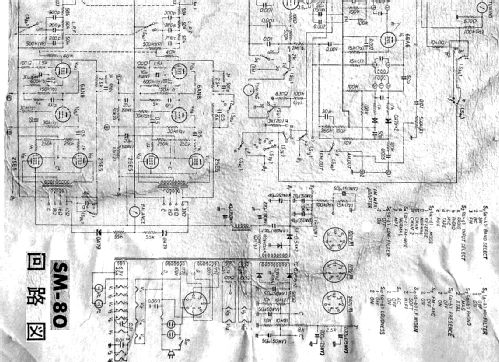

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6AQ8 6AQ8 6BA6 6BA6 6BA6 6BE6 6BE6 6BA6 12AX7 12AX7 6AN8 6AN8 25E5 25E5 25E5 25E5

• Number of Transistors
• 4

• Semiconductors
• 2SB51 2SB51 2SB51 2SB51 OA79 OA79 OA79 OA79 OA79 OA79

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 100; 117; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Hi-Fi Stereo Receiver SM-80 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 550 x 160 x 400 mm / 21.7 x 6.3 x 15.7 inch

• Notes
• 2 AM Channels, for early AM-Stereo;
  Ch1= SW/MW(BC)/FM, Ch2= MW(BC).
  FM-AFC with reactance tube.
  Can be retrofitted with a Multiplex/Stereo adapter.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
