Integrated Amplifier A-5

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1981 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 295354

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (50 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Integrated Amplifier A-5 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 132 x 247 mm / 16.9 x 5.2 x 9.7 inch
  • Notes

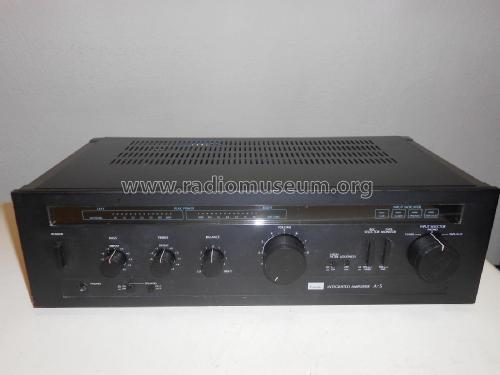

  • A hi-fi stereo integrated amplifier housed in a silver or black metal case with continuous output power of 2 x 25 watts RMS into 8 ohms both channels driven from 40 - 20,000Hz, THD ≤ 0.08%.
    Frequency response: 10Hz to 50kHz -Total harmonic distortion: 0.08% - Input sensitivity: 2.5mV (MM), 150mV (line) - Signal to noise ratio: 75dB (MM), 90dB (line) - Output: 130mV (line) - Speaker load impedance: 8Ω (minimum) - controllo volume/bass/treble/balance - commutatore speakers on/off - A/B - presa frontale per cuffia - VU meter L/R con 14 led per canale - high filter on/off - loudness on/off - rec selector - tape monitor - ingressi phono/tuner/tape-aux - input indicator a led verdi - consumo 160 watt - AC outlets.

    Made in Japan.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Sansui A-9 / A-7 / A-5)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
