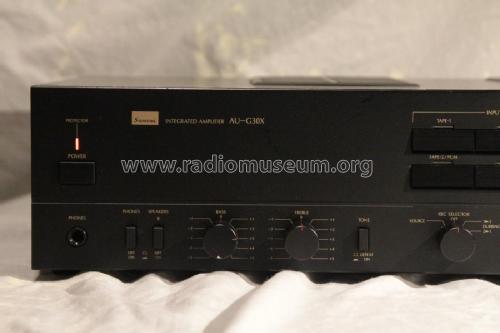

Integrated Amplifier AU-G30X

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1986 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 285066

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 90 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Integrated Amplifier AU-G30X - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 111 x 329 mm / 16.9 x 4.4 x 13 inch
  • Notes

  • A hi-fi stereo integrated amplifier housed in a black metal case with continuous output power of 2 x 45 watts RMS into 8 ohms both channels driven from 20 - 20,000Hz, THD ≤ 0.05%.

    Frequency response: 10Hz to 150kHz
    Total harmonic distortion: 0.05%
    Input sensitivity: 2.5mV (MM), 150mV (line)
    Signal to noise ratio: 82dB (MM), 100dB (line)
    Output: 150mV (line)
    Speaker load impedance: 4Ω to 16Ω

  • Net weight (2.2 lb = 1 kg)
  • 8.1 kg / 17 lb 13.5 oz (17.841 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Sansui AU-G30X)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
