Mini Component System me-X5α [me-X5Alpha]

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356272

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Mini Component System me-X5α [me-X5Alpha] - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 225 x 418 x 340 mm / 8.9 x 16.5 x 13.4 inch

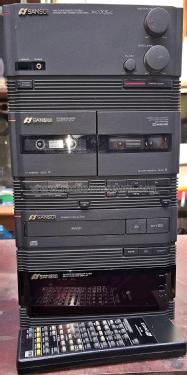

  • Notes

  • Mini Component System, bestehend aus vier mit zwei Systemkabeln gekoppelten Komponenten:

    -Stereo Tuner T-X7L
    -Compact Disc Player CD-X7
    -Cassette Deck D-X7
    -Integrated Amplifier A-X5

    Steuerung erfolgt über Remote Controller RS-F22.

    Anschlüsse: Antenna FM (75 Ω IEC), Antenna AM-Loop (2× Klemmanschluss), AV/DAT Rec+Play L+R (4× Cinch), Speakers 6...16 Ω L+R (4× Klemmanschluss), Phones (3,5 mm Klinkenbuchse frontseitig). Leistungsaufnahme 220 Watt.

    Made in Japan.

    Halbleiterliste nicht vollständig.

  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
