• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1975

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 146626

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

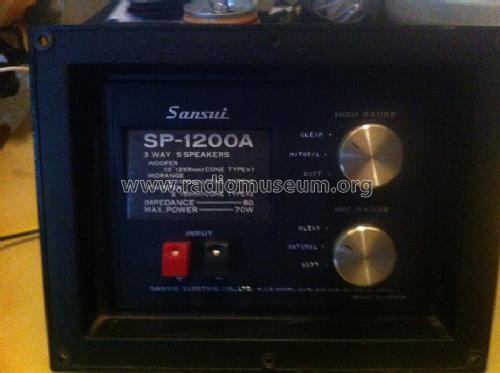

• Model: SP1200A - Sansui Electric Co., Ltd.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 380 x 591 x 265 mm / 15 x 23.3 x 10.4 inch

• Notes

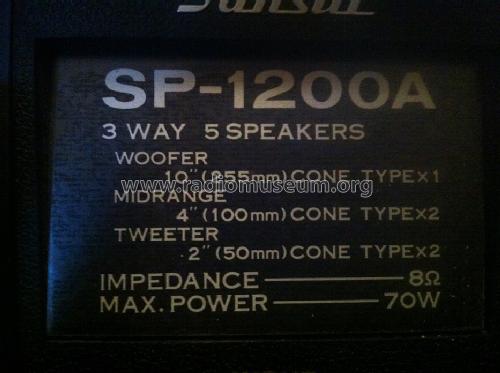

• 3-Weg-HiFi-Bassreflexbox mit 70 Watt Musik an 8 Ohm. 5 Systeme mit Regler für Mittelton- und Hochtonbereich. 94 dB/W/m, 30 - 20.000Hz.
  Bestückung: TT 250mm, 2 MHT-Konus 100mm, 2 HT-Konus 50mm, Frequenzweiche.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
