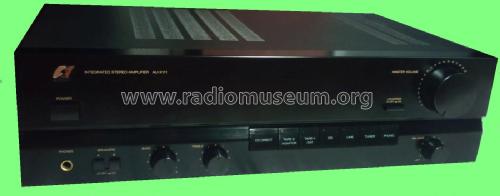

Stereo Integrated Amplifier AU-X111

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 277304

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60Hz; 120/220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier AU-X111 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 125 x 286 mm / 16.9 x 4.9 x 11.3 inch
  • Notes

  • Sansui Stereo Integrated Amplifier Model AU-X111.
    Power output: 30 watts per channel into 8Ω (stereo)
    Frequency response: 10Hz to 70kHz
    Total harmonic distortion: 0.03%
    Input sensitivity: 2.5mV (MM), 150mV (line)
    Inputs: Phono, CD, Tuner, Tape
    Signal to noise ratio: 78dB (MM), 105dB (line)
    Output: 150mV (line)
    Tone Controls:
    Bass +/-8dB at 50Hz
    Treble +/-8dB at 10000Hz
    Loudness +6dB at 50Hz
    Speaker load impedance: 4Ω to 16Ω
    Power Consumption: 165 Watts, 270 Watts max.

    Suffix:
    UK - United Kingdom
    EU - European Market
    EG - F.R. Germany Market
    SS - Saudi Arabian Market
    XX - Standard Version

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 110.00 GBP
  • Mentioned in
  • -- Original prospect or advert (Sansui - The Collection 1989-90)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
