• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261433

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• 2SC493 2SC493 2SC493 2SC493

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

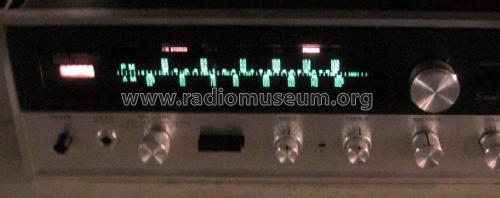

• Model: Stereo Tuner Amplifier 2000 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Notes

• Sansui Solid State AM/FM Stereophonic Tuner Amplifier Model 2000.
  30 Watts per channel into 8 Ohms, 20 - 20000 Hz
  AC Outlets: 1x Switched, 1x Unswitched
  Phono IN, AUX IN, Tape Rec, Tape Mon
  FM MPX Stereo decoder
  Speakers A, B, A+B
  Low Filter, High Filter, Loudness
  Bass- & Treble Control




• Price in first year of sale
• 300.00 USD

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
